YLX-X86 Multi-Card Bonding Router: Accelerating Seamless Connectivity with Unmatched Speed!
√ Multi-SIM design: Optimal base station selection, congestion avoidance, automatic network switching.
√ SDN revolutionizes networking: Automates services, centralizes control, reduces complexity.
√ Unique self-cooling design: Enhances device performance, durability with efficient heat dissipation.
√ Fast 5G speed, low latency, wide coverage. Stable network, reliable multi-carrier connections.
√ VPN ensures security, privacy. Binding detects threats, assesses network performance.
√ Different IP addresses on device ports: Strong firewall for threat monitoring and filtering.
√ WiFi 6E: 3000Mbps max speed, strong anti-interference, reliable in weak signal areas.
√ Global GPS coverage: Real-time, precise location tracking for diverse applications.
√ Remote device access: Enables remote control, monitoring, centralized management.
√ Supports multiple industrial protocols and secure VPN tunneling.
√ Offers wired and wireless backup for enhanced network reliability.
√ Facilitates remote configuration for large-scale network device deployments.
√ Industrial-grade design for reliable performance in harsh conditions.
√ Integrates with Cloudlink IoT for centralized network management.
√ Supports ODM/OEM for product customization and development.
The F16 5G aggregation router supports a working temperature range of -40°C to +85°C. This means that the router can operate in extremely low temperatures down to -40°C and can withstand high temperatures up to +85°C. This wide temperature range makes the F16 5G aggregation router suitable for deployment in harsh industrial environments or outdoor settings with extreme temperature conditions.
The F16 is an aggregation router that exhibits excellent heat dissipation. It features advanced heat dissipation design and an efficient cooling system, ensuring optimal temperature even under high loads and prolonged operation. The optimized heat dissipation structure facilitates effective airflow and enhanced cooling efficiency, while maintaining quiet operation. This exceptional heat dissipation performance enhances reliability, stability, and prolongs the device's lifespan. The F16 aggregation router delivers reliable performance and sustained heat dissipation capability in any operating conditions.

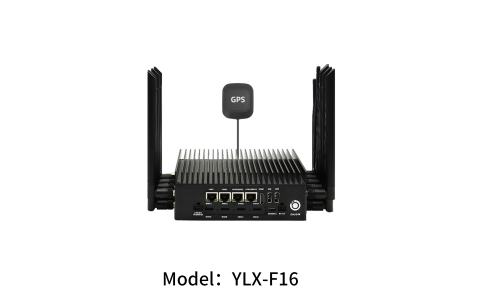

5G Bonding Router
Model：YLX-F16
5G Bonding Router
Model：YLX-F16
Optional | ||||
Model | Version | Network Bands Support | (Download/Upload） | |
YLX-F16-QGL-5G
| 5G Overseas Globe
| 5GNR SA&NSA | n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 | SA:Max. 2.4Gbps (DL)/ Max. 900Mbps (UL) NSA:Max. 3.2Gbps (DL)/ Max. 600Mbps (UL) |
LTE-FDD | B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 | Max. 1.6Gbps (DL)/Max. 200Mbps (UL)
| ||
LTE-TDD | B34/38/39/40/41/42/43/48; LAA: B46 | |||
WCDMA | B1/B2/B4/B5/B8/B19 | Max. 42Mbps (DL)/Max. 5.76Mbps (UL) | ||
YLX-F16-QGL-4G （CAT16）
| 4G Overseas Globe
| LTE-FDD | B1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 /13 / 14 / 17 / 18 / 19 / 20 / 25 /26 / 28 / 29 / 30 / 32 / 66 | Max. 1.0Gbps (DL)/ Max. 150Mbps (UL) |
LTE-TDD | B38 /39/40/41/42/43/46 (LAA) / B48 (CBRS) | Max. 880Mbps (DL)/ Max. 90Mbps (UL) | ||
WCDMA | B1/2 /3 /4 /5 /6 /8 /19 | Max. 384Kbps (DL)/ Max. 384Kbps (UL) | ||
Specification | |
CPU | Intel eight-core CPU 3.8G clock speed |
Memory | LPDDR5 16GB |
EMMC | 32GB |
SSD | 128GB |
Nor FLASH | 128 Mb |
5G Modules | 4个5G Modules（Oerseas can choose 4G- CAT16) |
Wifi Support | Wifi6e （Max rate：3000Mbps） (2.4 GHz & 5 GHz) 802.11 b/g/n/ax , 3X3 MIMO |

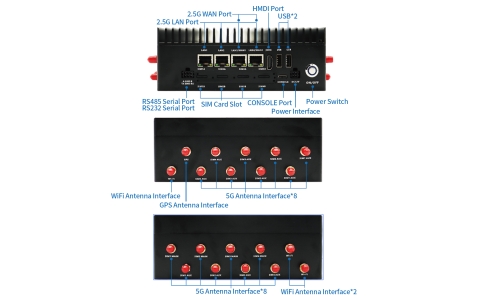

Antenna Interface | WIFI Antenna Interface: 3个 （2.4G WIFI Antenna，Impedance 50 ohm，SMA Inner pin interface) 5G Antenna Interface:16个 （5G Antenna，Impedance 50 ohm，SMA Inner pin interface) GPS Antenna Interface: 1 个 （Active Antenna) |
SIM Card Interface | 4 dual Nano SIM slots, (4 active and 4 backup, a total of 8 SIM slots, supports 1.8V/3V SIM/UIM cards) |
LAN Interface | The default LAN1-LAN2 are two 2.5G Gigabit LAN ports 2 2.5G Gigabit optional LAN ports (LAN3-LAN4 can be used as WAN ports when the LAN port mode is not selected) |
WAN Interface | 2 2.5G Gigabit optional WAN ports (LAN3-LAN4 can be used as LAN ports when the WAN port mode is not selected) |
Power Input Terminal | 1 (industrial terminal interface, DC 12V-5A) |
Power Switch Button | 1 piece (ring blue light) |
USB Interface | 2 |
HDMI Interface | 1 |
Console Port | 1 Type C USB port (debug) |
Load Balancing Throughput | ~2.5Gbps |
GPS Positioning Function | Positioning accuracy 1.5m |
Product and Packaging Dimensions | Host size: L*S*H: 178mm x172mm x 68 mm (excluding antenna and mounting hardware) One paper outer box packaging size: L*S*H: 32*27*20.5CM One aluminum alloy outer box packaging size: L*S*H: 35CM*25CM+12CM |
Product Host Weight
| Net weight: 1.75kg (excluding antenna and mounting hardware)) |
Gross weight: 3.5kg | |
Operating Temperature | -10 to 60 °C (storage temperature -40～+85ºC) |
Product Power Consumption | 60Watts (DC 12V-5A) |
Certified Product | Comply with CCC, CE, ROHS standards |
Installation Method | Desktop lay flat, wall mounted |
Chassis Material | All metal chassis |
Equipment Ventilation | Natural heat dissipation, no noise |
Protection Level | IP35 |
Equipment Warranty | Hardware warranty: 3 years (1 year free maintenance + 2 years paid maintenance service, except for man-made damage and force majeure factors) Software upgrade: New software upgrades provided within 5 years |
Software Function | |
Network Access | Support APN VPDN |
Access Authentication | Support CHAP/PAP authentication |
Network Mode | GSM/GPRS/EDGE,LIMTS/HSPA+/EVDO/TD-SCDMA/TD-LTE/FDD LTE/5G NR |
LAN Protocol | Support ARP, Ethernet |
WAN Protocol | Support static IP, DHCP, PPPoE, PPP |
IP Application | Support Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet |
IP Routing | Support routing |
NAT Function | Support network address translation |
Aggregation Protocol | YUNQUIC protocol |
Safety and Reliability | Power reverse phase protection, overvoltage protection, overcurrent protection; Ethernet interface has built-in 1.5KV electromagnetic isolation protection; Built-in 15KV ESD protection for SIM/UIM card interface |
Backup Function | Support wired, wireless, 5G multi-channel aggregation and mutual backup |
Link Online Monitoring | Send heartbeat packet detection, automatically connect when disconnected |
Built-in guard dog | Equipment operation self-checking technology, equipment operation fault self-repair |
Firewall | Stateful Packet Inspection (SPI), preventing Denial of Service (DoS) attacks, filtering multicast/Ping packets, Access Control List (ACL) Content URL filtering, port mapping, virtual IP mapping, IP-MAC binding |
Data Security | IPsec VPN /L2TP/PPTP/GRE/OPEN VPN/CA certificate and other virtual network applications |
Integrated Aggregation router functionality | Support IP/TCP, UDP transparent transmission mode Ethernet, wired, wifi wireless, 5g/4g aggregate broadband function, Support DCUDP, DCTCP mode |
QOS Management | Support bandwidth limit, IP speed limit |
Configuration Method | Supports telnet, web, ssh and console configuration methods |
Upgrade Method | Support web upgrade, support FOTA |
Log Function | Supports local system logs, remote logs, and serial port output logs. Important logs are saved after power failure |
SMS Function | Status query, configuration, restart |
Dial on Demand | Dial on demand, data activation, SMS activation |
Network Management Function | Supports remote control and remote management of Yunlianxin cloud platform |
Simple Network Management Functions | Support SNMP v1/v2c/v3, support SNMP TRAP function |
Traffic Management | Supports traffic threshold setting, traffic statistics and traffic alarm functions |
Alarm Function | Support system restart, LAN port online and offline, traffic alarm, SIM card failure and other alarms |
Maintenance Tools | Ping, traceroute, network speed test |
Status Query | System status, modem status, network connection status, routing status |
Product Optional
Optional | ||||
Model | Version | Network Bands Support | (Download/Upload） | |
YLX-F16-QGL-5G | 5GNR SA&NSA | n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 | SA: Max. 2.4Gbps (DL)/ Max. 900Mbps (UL) NSA:Max. 3.2Gbps (DL)/ Max. 600Mbps (UL) | |
LTE-FDD | B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 | Max. 1.6Gbps (DL)/Max. 200Mbps (UL) | ||
LTE-TDD | B34/38/39/40/41/42/43/48; LAA: B46 | |||
WCDMA | B1/B2/B4/B5/B8/B19 | Max. 42Mbps (DL)/Max. 5.76Mbps (UL) | ||
YLX-F16-QGL-4G （CAT16） | 4G Overseas Globe | LTE-FDD | B1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 /13 / 14 / 17 / 18 / 19 / 20 / 25 /26 / 28 / 29 / 30 / 32 / 66 | Max. 1.0Gbps (DL)/ Max. 150Mbps (UL) |
LTE-TDD | B38 /39/40/41/42/43/46 (LAA) / B48 (CBRS) | Max. 880Mbps (DL)/ Max. 90Mbps (UL) | ||
WCDMA | B1/2 /3 /4 /5 /6 /8 /19 | Max. 384Kbps (DL)/ Max. 384Kbps (UL) | ||

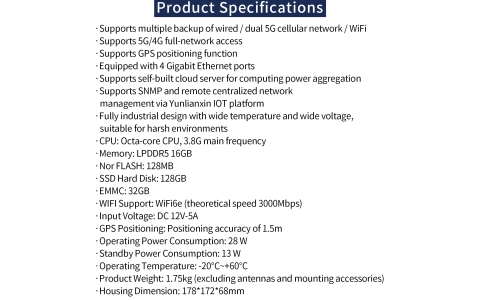

Product Specification
Specification | |
CPU | Intel eight-core CPU 3.8G clock speed |
Memory | LPDDR5 16GB |
EMMC | 32GB |
SSD | 128GB |
Nor FLASH | 128 Mb |
5G Modules | 4个5G Modules（Oerseas can choose 4G- CAT16) |
Wifi Support | Wifi6e （Max rate：3000Mbps） (2.4 GHz & 5 GHz) 802.11 b/g/n/ax , 3X3 MIMO |
Antenna Interface | WIFI Antenna Interface: 3个 （2.4G WIFI Antenna，Impedance 50 ohm，SMA Inner pin interface) 5G Antenna Interface: 16个 （5G Antenna，Impedance 50 ohm，SMA Inner pin interface) GPS Antenna Interface: 1 个 （Active Antenna) |
SIM Card Interface | 4 dual Nano SIM slots, (4 active and 4 backup, a total of 8 SIM slots, supports 1.8V/3V SIM/UIM cards) |
LAN Interface | The default LAN1-LAN2 are two 2.5G Gigabit LAN ports 2 2.5G Gigabit optional LAN ports (LAN3-LAN4 can be used as WAN ports when the LAN port mode is not selected) |
WAN Interface | 2 2.5G Gigabit optional WAN ports (LAN3-LAN4 can be used as LAN ports when the WAN port mode is not selected) |
Power Input Terminal | 1 (industrial terminal interface, DC 12V-5A) |
Power Switch Button | 1 piece (ring blue light) |
USB Interface | 2 |
HDMI Interface | 1 |
Console Port | 1 Type C USB port (debug) |
Load Balancing Throughput | ~2.5Gbps |
GPS Positioning Function | Positioning accuracy 1.5m |
Product and Packaging Dimensions | Host size: L*S*H: 178mm x172mm x 68 mm (excluding antenna and mounting hardware) One paper outer box packaging size: L*S*H: 32*27*20.5CM One aluminum alloy outer box packaging size: L*S*H: 35CM*25CM+12CM |
Product Host Weight
| Net weight: 1.75kg (excluding antenna and mounting hardware)) |
Gross weight: 3.5kg | |

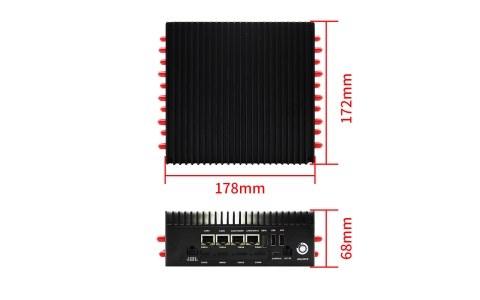

Product size
Application Scenarios of 5G Bonding Router
5G bonding routers play a crucial role in various application scenarios.
Here are some common applications of 5G bonding routers:
1.Mobile Office: 5G bonding routers provide fast and stable network connectivity for data transmission, video conferencing, and remote access in mobile office settings.
2.Smart City: In smart city environments, 5G bonding routers enable high-bandwidth connections for devices and sensors, supporting applications such as smart transportation, smart security, and smart lighting.
3.Industrial Automation: 5G bonding routers are used in industrial automation to provide reliable high-speed connections for factory equipment and robots, enabling real-time data transmission and remote monitoring.
4.Internet of Things (IoT) Applications: 5G bonding routers are suitable for IoT applications, connecting and managing a large number of IoT devices, facilitating data transmission and management on IoT platforms.
5.Agriculture and Forestry: In the fields of agriculture and forestry, 5G bonding routers provide high-speed and stable network connectivity for agricultural sensors and monitoring devices, enabling agricultural automation and remote monitoring.
6.Emergency Rescue: 5G bonding routers offer reliable communication support in emergency rescue scenarios, including video transmission, location tracking, and data transfer.
7.High-Definition Video Streaming: 5G bonding routers support real-time transmission of high-definition videos, suitable for online streaming, video surveillance, and remote education applications.
8.Autonomous Vehicles: 5G bonding routers provide high-speed and low-latency network connectivity for autonomous vehicles, enabling communication and data transmission between vehicles and infrastructure.
Product Accessories
Standard Accessories
√ 5G Bonding Router *1
√ Glue Stick 5G Antenna *16
√ WiFi Antenna *3
√ GPS Antenna *1
√ 1M Network Cable *1
√ 12V 5A Adapter *1
√ Warranty card *1
√ 6pin Serial Terminal *1
Optional Accessories
√ Portable Box *1
√ 5G 4-in-1 Antenna *1
√ Extended warranty for 3 years
