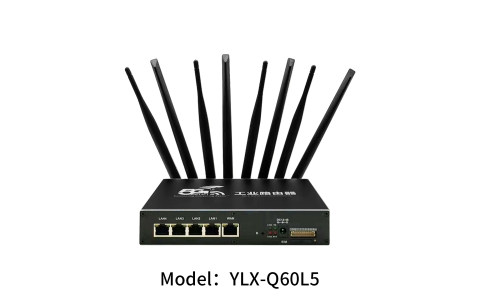

5G NR Modem WiFi 6 VPN Openwrt Gateway 5 Gigabit Ports Industrial Router with SIM Card Slot Q60




Description

Max. LAN Data Rate:1000MbpsStandards And Protocols:IEEE 802.11b/g/n/ac/wifi6 Ax
CPU:Qualcomm ARM-A53 Quad-core 1.80Mhz FrequencyWi-Fi Supported Frequency:2.4G & 5G
Function:FireWall, QoS, VPN, 4G /5G To LANOperating Temperature:-40~+75ºC (-40~+167°F)
Memory:Onboard SMD DDR4 1GBLAN Ports:4 Pcs (10M/100M/1000M Adaptive MDI/MDIX Ports)
Color:BlackSupport:OEM And ODM
Customize:Customize And PCBA


  • Supports 4G/5G Wired and Cellular WiFi Backup

  • Support 5G NR-NA/NSA high-speed network and 4G high-speed network full Netcom

  • Support Wi-Fi

  • Has 5 Ethernet ports

  • Supports multiple VPN functions

  • Support wired and wireless backup

  • Support SNMP and CloudLink IOT platform to achieve efficient remote centralized network management

  • Support efficient completion of large-scale equipment network deployment

  • Support rail and desktop installation

  • Fully industrialized design, not afraid of the challenges of harsh conditions



YLX-Q60L5 5G industrial router adopts Qualcomm ARM-A53 quad-core 1.80Mhz main control design, the product supports 5G, WiFi6, wired network and other access methods, has an open architecture design, provides fast and flexible customization; can realize local real-time data analysis with intelligent processing.



Adopt industrial-grade standard design, wide temperature, wide voltage, dustproof, strong electromagnetic interference resistance, multiple hardware protection, with external watchdog circuit, can run stably even in harsh environments, and can adapt to different industry scenarios , using the public wireless network to provide users with wireless data transmission function.



Mainly in areas with harsher environments, we provide various network support for everyone. Now it has been widely used in M2M industries in the IoT industry chain, such as live broadcast, smart grid, intelligent transportation, finance, supply chain automation, industrial automation, intelligent buildings, fire protection, public safety, environmental protection, meteorology, digital medical care, telemetry , agriculture, forestry, water, coal, petrochemical and other fields.



The design of this product fully meets the needs of unattended on-site communication. It adopts software and hardware watchdog and multi-level link detection mechanism to ensure the stability and reliability of communication. At the same time, it supports the IOT management platform, which is convenient for users to manage remotely and fully guarantees. Intelligent equipment management. Various VPN technologies ensure the security of data transmission and prevent data from being maliciously accessed or tampered with. The user-friendly WEB configuration interface design is convenient for users to configure and greatly reduces the difficulty for users to use.

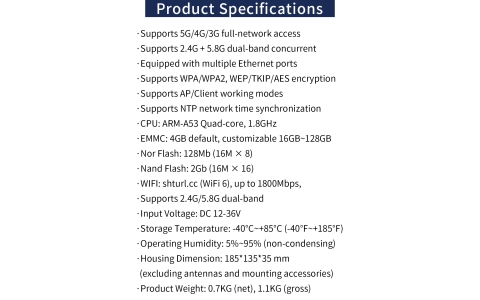

Hardware parameters
CPUQualcomm ARM-A53 quad-core 1.80Mhz frequency
MemoryOnboard SMD DDR4 1GB
EMMC4GB (default) can be customized 16GB-128GB
Nand Flash2Gb (16M x 16)
Nor FLASH128 (16M x 8)Mb
WIFI802.11.ax (Wi-Fi 6), the highest rate can reach 1800Mbps, support 2.4G/5.8G dual-band
Network support

Support China Unicom, China Telecom, China Mobile and other 3G/4G/5G networks

Industrial grade 5G three Netcom module, or support seven-mode three Netcom (4G module, can replace the global 5G module)

System timeTime synchronization using NTP technology

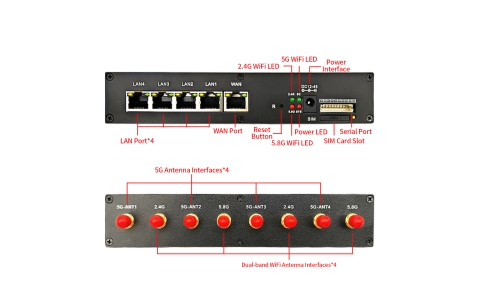

Product interface

Number of network ports



WAN port1 pc WAN port

LAN port4 pcs (10M/100M/1000M adaptive MDI/MDIX ports)
SIM card interface1 pc(drawer card holder, support 1.8V/3V SIM/UIM card)
Module interface1 pc(5G/4G module)
Reset1 pc(reset button)

Antenna interface





4 pcs 5G antennas (4G/5G antenna, impedance 50 ohms, SMA female inner hole interface)

2.4GWIFI 2 pcs (2.4G WIFI antenna, impedance 50 ohms, SMA inner pin interface)

5.8GWIFI 2 pcs (5.8G WIFI antenna, impedance 50 ohms, SMA inner pin interface)
Power terminal1pc (DC connector)
Console port1 pc built-in
M.2 interface1 pc USB3.0 compatible PCIe
UART1 pc RS485, 1 RS232
WIFI performance
Protocol standardIEEE 802.11b/g/n/ac/wifi6ax
Antenna support5.8GHz: 2X2/80Mhz
WIFI frequency band2.4GHz: 2*2/40Mhz


Output Power

Single-channel dual 2.4G WIFI, the maximum output power is about 0.8Watt

Single-channel dual 5.8GWIFI, the maximum output power is about 1.2Watts

Receive sensitivity

Under the condition of @802.11AX, 2.4G receiving gain is 14DBi

Under the condition of @80.11AX, 5.8G receive gain 13DBi

Transmission distance100M (the actual transmission distance depends on the environment)
Safety featuresOpen system, shared key, WPA/WPA2 authentication, WEP/TKIP/AES encryption
Operating modeAP, Client working mode
WIFI software functionModify SSID, channel switching, support AP mode (relay mode)
5G module
Band support5G/4G/3G
Theoretical bandwidth

NR SA: 1.9Gbps(DL)/750Mbps(UL)

NR ENDC: 2Gbps(DL)/340Mbps(UL)

LTE: 500Mbps (DL)/150Mbps (UL)

WCDMA: 42Mbps (DL)/11Mbps

The above data are only theoretical values, and the actual network speed is limited by the local network environment

Number of 5G modules1 built-in 5G module (1 external drawer SIM card slot)
Power and Power Consumption
Power supplyExternal power adapter (12V 3A)
Operating VoltagePower input DC 12-36V
Working power consumption450-700mA@12V DC
Standby power consumption300-450mA@12V DC
