New Design X2 Dual LTE-A VPN WiFi Gateway 5 Porst GPS Beidou Double Star Positioning USB Industrial Router with SIM Card

New Design X2 Dual Band VPN WiFi Gateway 5 Porst GPS Beidou Double Star Positioning USB Industrial Router with SIM Card

Description
Max. LAN Data Rate:300MbpsStandards And Protocols:802.11.b/g/n (Wi-Fi 4)
CPU:Qualcomm MIPS 650Mhz FrequencyWi-Fi Supported Frequency:2.4G
Function:FireWall, QoS, VPN, 4G To LANOperating Temperature:-40~+75ºC (-40~+167°F)
Memory:Onboard SMD DDR2 128MBLAN Ports:8.4 (10M/100M Adaptive MDI/MDIX Ports)
Color:Bule Or BlackSupport:ODM And OEM
Customize:Customize And PCBA


  • Support wired and cellular network wifi dual 4G backup

  • Support 4G LTE high-speed network and 2G/3G full Netcom

  • 5 Ethernet ports with WLAN support

  • Support wired and wireless backup

  • Support GPS/Beidou double star positioning

  • Supports multiple VPN functions

  • Supports SNMP and Yunlianxin IOT platform to achieve efficient remote centralized network management

  • Support efficient completion of large-scale equipment network deployment

  • Support a variety of installation methods Desktop, wall-mounted, rail-mounted

  • Fully industrialized design, not afraid of the challenges of harsh conditions



YLX-X2L5 4G dual-card industrial router supports 4G, WiFi4, wired network and other access methods, has an open architecture design, provides fast and flexible customization; can realize local real-time data analysis and intelligent processing; adopts industrial-grade standard design, wide Temperature, wide pressure, dustproof, strong electromagnetic interference resistance. Equipped with multiple hardware protections, with an external watchdog circuit, it can run stably even in harsh environments, adapt to different industry scenarios, and use public wireless networks to provide users with wireless data transmission functions.



Mainly in areas with harsher environments, we provide various network support for everyone. Now it has been widely used in M2M industries in the IoT industry chain, such as smart grid, intelligent transportation, finance, supply chain automation, industrial automation, intelligent buildings, fire protection, public safety, environmental protection, meteorology, digital medical care, telemetry, agriculture , forestry, water, coal, petrochemical and other fields.



4G industrial router series products are IoT wireless router products integrating 4G/3G/2G network, virtual private network and other technologies. With 4G/5G wireless WAN dual network backup and Wi-Fi wireless LAN technology, the device provides uninterrupted multiple network access capabilities, and provides users with high-speed and stable data with its comprehensive security and wireless services. transmission channel.



The design of this product fully meets the needs of unattended on-site communication. It adopts software and hardware watchdog and multi-level link detection mechanism to ensure the stability and reliability of communication. At the same time, it supports the IOT management platform, which is convenient for users to manage remotely and fully guarantees. Intelligent equipment management. Various VPN technologies ensure the security of data transmission and prevent data from being maliciously accessed or tampered with. The user-friendly WEB configuration interface design is convenient for users to configure and greatly reduces the difficulty for users to use.

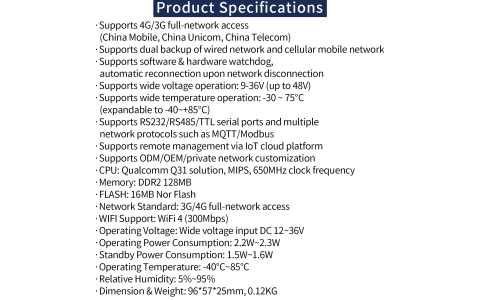

Hardware parameters
CPUQualcomm MIPS 650Mhz frequency
MemoryOnboard SMD DDR2 128MB
FLASH16MB Nor Flash
WIFI802.11.b/g/n (Wi-Fi 4), the highest rate can reach 300Mbps, support 2.4G
Network supportIndustrial grade 4G full Netcom module, or 3G module
system timeTime synchronization using NTP technology
WIFI performance
Protocol standardIEEE 802.11b/g/n
Antenna support2.4GHz: 2*2 40MHz
WIFI rateUp to 300Mbps
WIFI frequency band2.412GHz-2.472GHz
Operating modeAP, Client working mode
Transmission distanceVisible distance 100 meters (the actual transmission distance depends on the environment)
Safety featuresOpen system, shared key, WPA/WPA2 authentication, WEP/TKIP/AES encryption
WIFI software functionModify SSID, channel switching, support AP mode (relay mode)
4G module
CAT1Theoretical transmission rate: uplink 5Mbps, downlink 10Mbps
CAT4Theoretical transmission rate: uplink 50Mbps, downlink 150Mbps (default)
CAT6Theoretical transmission rate: Upstream 100Mbps, Downstream 300Mbps

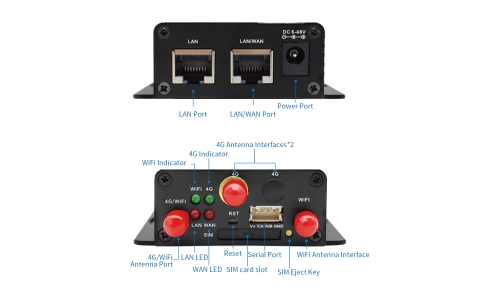

Product interface
WAN port1 (can be configured as LAN, 10M/100M adaptive MDI/MDIX port)
LAN port4 (10M/100M adaptive MDI/MDIX ports)
SIM card interface2 (drawer-type card holder, support 1.8V/3V SIM/UIM card) built-in eSIM interface, can be connected to eSIM chip card
TF card interface1 (external TF memory card is available)
4G antenna interface4 channels (4G antenna, impedance 50 ohms, SMA female connector)
WIFI antenna interface2 channels (2.4G WIFI antenna, impedance 50 ohms, SMA female inner pin interface)
GPS Antenna1 (1 GPS antenna, 1 GPS Beidou positioning module is required, this is optional)
USB interfaceSupport 1 channel
Reset button1 (reset button, long press for 5 seconds to restore factory settings

Power interface



1 (DC 5.5* 2.1/2.5 seat)

1 (2Pin 3.81mm industrial terminal type interface, support positive and negative connection)
Console port1 external (RS232/RS485 level serial port and GPIO interface)
Indicator light1 WiFi indicator (this light is the SYS power indicator, this light flashes when powered on)

1 GPS indicator (when the GPS is connected, the light will flash)

2 4G network indicators (when the 4G signal is connected, the corresponding 4G indicator flashes)

8 (four sets of RS485 lights)
Built-in MINIPCIE interfaceBuilt-in two miniPCIe connectors, install two 4G modules
Power and Power Consumption
Power supplyExternal power adapter (12V 2A)
Operating VoltagePower input DC 12V-2A (support wide voltage 9-36V)
POE supportPowered PD module (optional)
Working power consumption300~600mA @12V DC
Standby power consumption100~200mA@12V DC
