Description
| Max. LAN Data Rate: | 1000Mbps | Band Support: | 5G/4G/3G Netcom Module |
|---|---|---|---|
| CPU: | Dual Core Four Threads 880Mhz Frequency | Power Supply: | External Power Adapter (12V 2A) |
| Function: | FireWall, QoS, VPN, 4G /5G To LAN | Operating Temperature: | -40～+75ºC (-40～+167°F) |
| Memory: | Onboard SMD DDR3 128MB Expandable To 512MB | LAN Ports: | 1 X LAN (10M/100M/1000M Adaptive MDI/MDIX Port) |
| Color: | Black | Support: | OEM And ODM |
| Customize: | Customize And PCBA |
Support 4G/5G LTE high-speed network
Has 2 Ethernet ports
Supports multiple VPN functions
Support wired and wireless backup
Support SNMP and CloudLink IOT platform to realize efficient remote centralized network management
Support efficient completion of large-scale equipment network deployment
Support wall-mounted and desktop installation
Fully industrialized design, not afraid of the challenges of harsh conditions

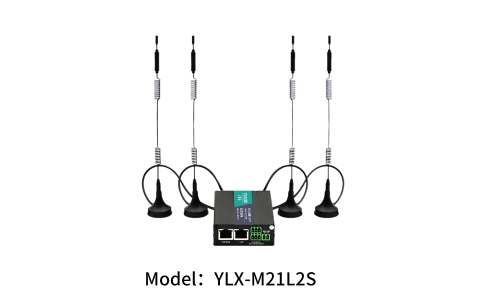

YLX-M21L2 5G industrial router supports 5G, wired network and other access methods, has an open architecture design, provides fast and flexible customization; can realize local real-time data analysis and intelligent processing; adopts industrial-grade standard design, wide temperature, wide voltage , dustproof, anti-strong electromagnetic interference. Equipped with multiple hardware protections, with an external watchdog circuit, it can run stably even in harsh environments.
Mainly in areas with harsher environments, we provide various network support for everyone. Now it has been widely used in M2M industries in the IoT industry chain, such as smart grid, intelligent transportation, finance, supply chain automation, industrial automation, intelligent buildings, fire protection, public safety, environmental protection, meteorology, digital medical care, telemetry, agriculture , forestry, water, coal, petrochemical and other fields.
The design of this product fully meets the needs of unattended on-site communication. It adopts software and hardware watchdog and multi-level link detection mechanism to ensure the stability and reliability of communication. At the same time, it supports the IOT management platform, which is convenient for users to manage remotely and fully guarantees. Intelligent equipment management. Various VPN technologies ensure the security of data transmission and prevent data from being maliciously accessed or tampered with. The user-friendly WEB configuration interface design is convenient for users to configure and greatly reduces the difficulty for users to use.

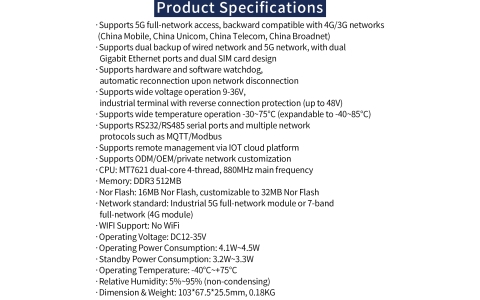

| Hardware performance | |||
| CPU | Dual core four threads 880Mhz frequency | ||
| Memory | Onboard SMD DDR3 128MB expandable to 512MB | ||
| FLASH | 16MB Nor Flash, expandable to 32MB Nor Flash | ||
| Network support | Industrial-grade 5G full Netcom module, or support seven-mode full Netcom (4G module) | ||
| System time | Time synchronization adopts NTP technology and built-in RTC | ||
| 5G module | |||
| Band support | Support 5G/4G/3G three Netcom module, or support seven-mode three Netcom (4G module, can replace the global 5G module) | ||
| Theoretical bandwidth | NR SA: 1.9Gbps(DL)/750Mbps(UL) NR ENDC: 2Gbps(DL)/340Mbps(UL) LTE: 500Mbps (DL)/150Mbps (UL) WCDMA: 42Mbps (DL)/11Mbps The above data are only theoretical values, and the actual network speed is limited by the local network environment | ||
| Number of 5G modules | 1 pc built-in 5G module (optional 4G module) | ||

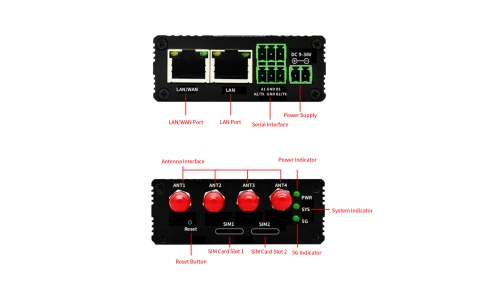

| Product interface | |||
Network port
| WAN port | 1 pc WAN/LAN switch (10M/100M/1000M adaptive MDI/MDIX port) | |
| LAN port | 1 pc LAN (10M/100M/1000M adaptive MDI/MDIX port) | ||
Antenna interface
| 5G/4G Antenna | 4 pcs (4G/5G antenna, impedance 50 ohms, SMA head inner hole interface) | |
| GPS Antenna | Use when expanding GPS function | ||
| Module interface | 1 pc module interface (built-in interface on the board, optional 4G or 5G module) | ||
| SIM card interface | 1 pc (drawer card holder, support 1.8V/3V SIM/UIM card) | ||
| Reset | 1 pc (reset button) | ||
| Power/Communication Interface | 1 pc (7-pin 3.81mm pitch industrial terminal) | ||
| Console port | 1 pcbuilt-in | ||
| 5G/4G module interface | The board has a built-in module interface, optional (4G or 5G module) | ||
| Indicator light | 2 pcs(1 5G indicator, 1 SYS indicator) | ||
| Power and Power Consumption | |||
| Power supply | External power adapter (12V 2A) | ||
| Operating Voltage | Support wide power input DC 12-35V | ||
| Working power consumption | 500～700mA @12V DC | ||
| Standby power consumption | 300～500 mA@12V DC | ||
